MC(JE) 1.20.1源码层分析刷怪机制——解决无法刷怪问题

可根据所需跳着看!!!

1.开始分析

1. 使用工具

2.入口分析

首先将项目克隆到本地，然后根据仓库所给的教程进行成反混淆的后jar包，记得git checkout到自己所需的版本

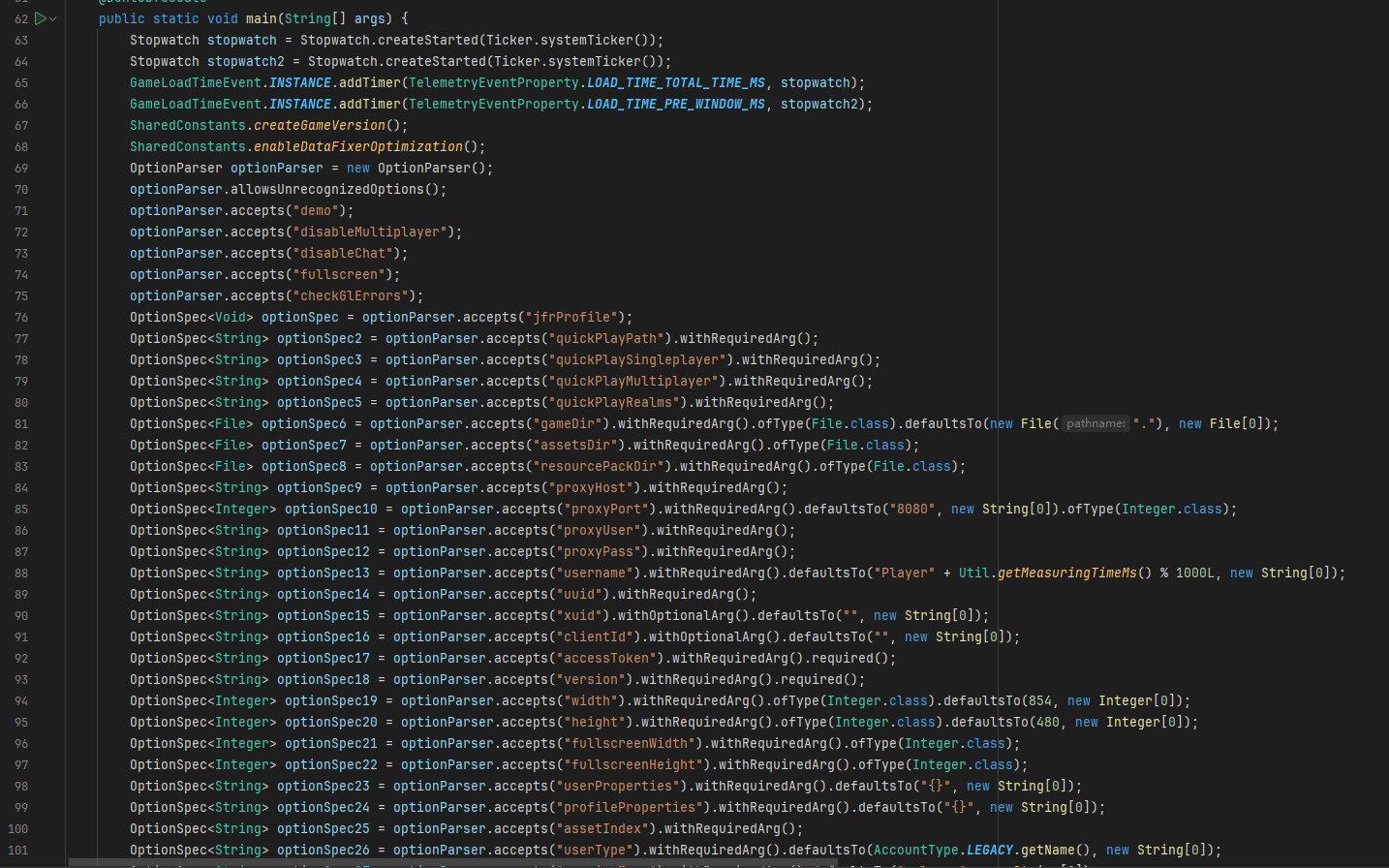

根据jar包的签名定位到main入口，映入眼帘的是一堆参数，如图所示

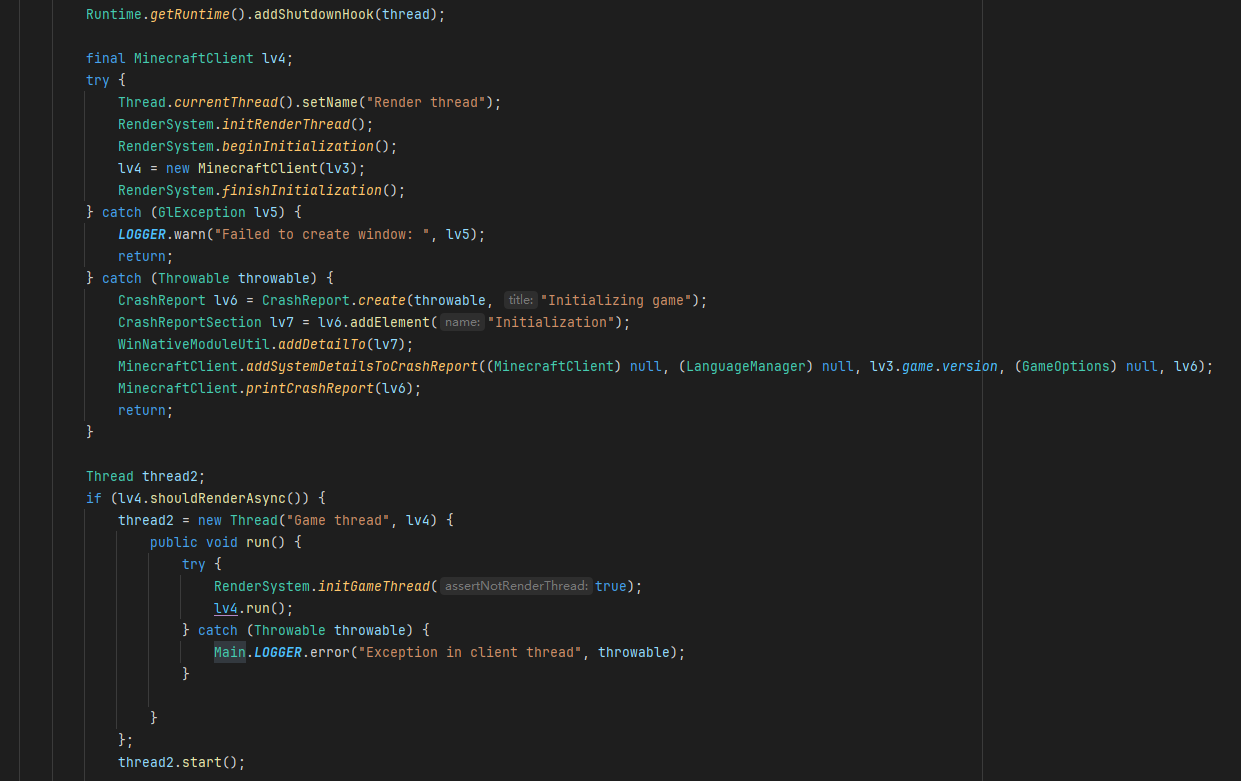

- 往下寻找可以看到创建了2个进程用来执行渲染和游戏逻辑Game thread，跳进游戏的Runnable接口中

- 进来后while死循环直到running为false。调用了startTick用来开始计时随后调用了render函数用于渲染，渲染结束后停止计数，直接跟进。发现tick没有具体的实现过程。

 public void run() {
    this.thread = Thread.currentThread();
    if (Runtime.getRuntime().availableProcessors() > 4) {
        this.thread.setPriority(10);
    }

    try {
        boolean bl = false;

        while(this.running) {
            if (this.crashReportSupplier != null) {
                printCrashReport((CrashReport)this.crashReportSupplier.get());
                return;
            }

            try {
                TickDurationMonitor lv = TickDurationMonitor.create("Renderer");
                boolean bl2 = this.shouldMonitorTickDuration();
                this.profiler = this.startMonitor(bl2, lv);
                this.profiler.startTick();
                this.recorder.startTick();
                this.render(!bl);  // 跟进render
                this.recorder.endTick();
                this.profiler.endTick();
                this.endMonitor(bl2, lv);
            } catch (OutOfMemoryError outOfMemoryError) {
                if (bl) {
                    throw outOfMemoryError;
                }

                this.cleanUpAfterCrash();
                this.setScreen(new OutOfMemoryScreen());
                System.gc();
                LOGGER.error(LogUtils.FATAL_MARKER, "Out of memory", outOfMemoryError);
                bl = true;
            }
        }
    } catch (CrashException lv2) {
        this.addDetailsToCrashReport(lv2.getReport());
        this.cleanUpAfterCrash();
        LOGGER.error(LogUtils.FATAL_MARKER, "Reported exception thrown!", lv2);
        printCrashReport(lv2.getReport());
    } catch (Throwable throwable) {
        CrashReport lv3 = this.addDetailsToCrashReport(new CrashReport("Unexpected error", throwable));
        LOGGER.error(LogUtils.FATAL_MARKER, "Unreported exception thrown!", throwable);
        this.cleanUpAfterCrash();
        printCrashReport(lv3);
    }

}

//=================Render======================
private void render(boolean tick) {
    this.window.setPhase("Pre render");
    long l = Util.getMeasuringTimeNano();
    if (this.window.shouldClose()) {
        this.scheduleStop();
    }

    if (this.resourceReloadFuture != null && !(this.overlay instanceof SplashOverlay)) {
        CompletableFuture<Void> completableFuture = this.resourceReloadFuture;
        this.resourceReloadFuture = null;
        this.reloadResources().thenRun(() -> completableFuture.complete((Object)null));
    }

    Runnable runnable;
    while((runnable = (Runnable)this.renderTaskQueue.poll()) != null) {
        runnable.run();
    }

    if (tick) {
        int i = this.renderTickCounter.beginRenderTick(Util.getMeasuringTimeMs());
        this.profiler.push("scheduledExecutables");
        this.runTasks();
        this.profiler.pop();
        this.profiler.push("tick");

        for(int j = 0; j < Math.min(10, i); ++j) {
            this.profiler.visit("clientTick");
            this.tick();  /// 跟进 tick1
        }

        this.profiler.pop();
    }

    this.mouse.updateMouse();
    this.window.setPhase("Render");
    this.profiler.push("sound");
    this.soundManager.updateListenerPosition(this.gameRenderer.getCamera());
    this.profiler.pop();
    this.profiler.push("render");
    long m = Util.getMeasuringTimeNano();
    boolean bl2;
    if (!this.options.debugEnabled && !this.recorder.isActive()) {
        bl2 = false;
        this.gpuUtilizationPercentage = (double)0.0F;
    } else {
        bl2 = this.currentGlTimerQuery == null || this.currentGlTimerQuery.isResultAvailable();
        if (bl2) {
            GlTimer.getInstance().ifPresent(GlTimer::beginProfile);
        }
    }

    RenderSystem.clear(GlConst.GL_DEPTH_BUFFER_BIT | GlConst.GL_COLOR_BUFFER_BIT, IS_SYSTEM_MAC);
    this.framebuffer.beginWrite(true);
    BackgroundRenderer.clearFog();
    this.profiler.push("display");
    RenderSystem.enableCull();
    this.profiler.pop();
    if (!this.skipGameRender) {
        this.profiler.swap("gameRenderer");
        this.gameRenderer.render(this.paused ? this.pausedTickDelta : this.renderTickCounter.tickDelta, l, tick);
        this.profiler.pop();
    }

    if (this.tickProfilerResult != null) {
        this.profiler.push("fpsPie");
        DrawContext lv = new DrawContext(this, this.bufferBuilders.getEntityVertexConsumers());
        this.drawProfilerResults(lv, this.tickProfilerResult);
        lv.draw();
        this.profiler.pop();
    }

    this.profiler.push("blit");
    this.framebuffer.endWrite();
    this.framebuffer.draw(this.window.getFramebufferWidth(), this.window.getFramebufferHeight());
    this.renderTime = Util.getMeasuringTimeNano() - m;
    if (bl2) {
        GlTimer.getInstance().ifPresent((glTimer) -> this.currentGlTimerQuery = glTimer.endProfile());
    }

    this.profiler.swap("updateDisplay");
    this.window.swapBuffers();
    int k = this.getFramerateLimit();
    if (k < 260) {
        RenderSystem.limitDisplayFPS(k);
    }

    this.profiler.swap("yield");
    Thread.yield();
    this.profiler.pop();
    this.window.setPhase("Post render");
    ++this.fpsCounter;
    boolean bl3 = this.isIntegratedServerRunning() && (this.currentScreen != null && this.currentScreen.shouldPause() || this.overlay != null && this.overlay.pausesGame()) && !this.server.isRemote();
    if (this.paused != bl3) {
        if (this.paused) {
            this.pausedTickDelta = this.renderTickCounter.tickDelta;
        } else {
            this.renderTickCounter.tickDelta = this.pausedTickDelta;
        }

        this.paused = bl3;
    }

    long n = Util.getMeasuringTimeNano();
    long o = n - this.lastMetricsSampleTime;
    if (bl2) {
        this.metricsSampleDuration = o;
    }

    this.metricsData.pushSample(o);
    this.lastMetricsSampleTime = n;
    this.profiler.push("fpsUpdate");
    if (this.currentGlTimerQuery != null && this.currentGlTimerQuery.isResultAvailable()) {
        this.gpuUtilizationPercentage = (double)this.currentGlTimerQuery.queryResult() * (double)100.0F / (double)this.metricsSampleDuration;
    }

    while(Util.getMeasuringTimeMs() >= this.nextDebugInfoUpdateTime + 1000L) {
        String string;
        if (this.gpuUtilizationPercentage > (double)0.0F) {
            String var10000 = this.gpuUtilizationPercentage > (double)100.0F ? Formatting.RED + "100%" : Math.round(this.gpuUtilizationPercentage) + "%";
            string = " GPU: " + var10000;
        } else {
            string = "";
        }

        currentFps = this.fpsCounter;
        this.fpsDebugString = String.format(Locale.ROOT, "%d fps T: %s%s%s%s B: %d%s", currentFps, k == 260 ? "inf" : k, (Boolean)this.options.getEnableVsync().getValue() ? " vsync" : "", this.options.getGraphicsMode().getValue(), this.options.getCloudRenderMode().getValue() == CloudRenderMode.OFF ? "" : (this.options.getCloudRenderMode().getValue() == CloudRenderMode.FAST ? " fast-clouds" : " fancy-clouds"), this.options.getBiomeBlendRadius().getValue(), string);
        this.nextDebugInfoUpdateTime += 1000L;
        this.fpsCounter = 0;
    }

    this.profiler.pop();
}


//=================== tick 1 ====================
public void tick() {
    if (this.itemUseCooldown > 0) {
        --this.itemUseCooldown;
    }

    this.profiler.push("gui");
    this.messageHandler.processDelayedMessages();
    this.inGameHud.tick(this.paused);
    this.profiler.pop();
    this.gameRenderer.updateTargetedEntity(1.0F);
    this.tutorialManager.tick(this.world, this.crosshairTarget);
    this.profiler.push("gameMode");
    if (!this.paused && this.world != null) {
        this.interactionManager.tick();
    }

    this.profiler.swap("textures");
    if (this.world != null) {
        this.textureManager.tick();
    }

    if (this.currentScreen == null && this.player != null) {
        if (this.player.isDead() && !(this.currentScreen instanceof DeathScreen)) {
            this.setScreen((Screen)null);
        } else if (this.player.isSleeping() && this.world != null) {
            this.setScreen(new SleepingChatScreen());
        }
    } else {
        Screen var2 = this.currentScreen;
        if (var2 instanceof SleepingChatScreen) {
            SleepingChatScreen lv = (SleepingChatScreen)var2;
            if (!this.player.isSleeping()) {
                lv.closeChatIfEmpty();
            }
        }
    }

    if (this.currentScreen != null) {
        this.attackCooldown = 10000;
    }

    if (this.currentScreen != null) {
        Screen.wrapScreenError(() -> this.currentScreen.tick(), "Ticking screen", this.currentScreen.getClass().getCanonicalName());
    }

    if (!this.options.debugEnabled) {
        this.inGameHud.resetDebugHudChunk();
    }

    if (this.overlay == null && this.currentScreen == null) {
        this.profiler.swap("Keybindings");
        this.handleInputEvents();
        if (this.attackCooldown > 0) {
            --this.attackCooldown;
        }
    }

    if (this.world != null) {
        this.profiler.swap("gameRenderer");
        if (!this.paused) {
            this.gameRenderer.tick();
        }

        this.profiler.swap("levelRenderer");
        if (!this.paused) {
            this.worldRenderer.tick();
        }

        this.profiler.swap("level");
        if (!this.paused) {
            this.world.tickEntities();
        }
    } else if (this.gameRenderer.getPostProcessor() != null) {
        this.gameRenderer.disablePostProcessor();
    }

    if (!this.paused) {
        this.musicTracker.tick();
    }

    this.soundManager.tick(this.paused);
    if (this.world != null) {
        if (!this.paused) {
            if (!this.options.joinedFirstServer && this.isConnectedToServer()) {
                Text lv2 = Text.translatable("tutorial.socialInteractions.title");
                Text lv3 = Text.translatable("tutorial.socialInteractions.description", new Object[]{TutorialManager.keyToText("socialInteractions")});
                this.socialInteractionsToast = new TutorialToast(net.minecraft.client.toast.TutorialToast.Type.SOCIAL_INTERACTIONS, lv2, lv3, true);
                this.tutorialManager.add(this.socialInteractionsToast, 160);
                this.options.joinedFirstServer = true;
                this.options.write();
            }

            this.tutorialManager.tick();

            try {
                this.world.tick(() -> true); // 跟进tick 2
            } catch (Throwable throwable) {
                CrashReport lv4 = CrashReport.create(throwable, "Exception in world tick");
                if (this.world == null) {
                    CrashReportSection lv5 = lv4.addElement("Affected level");
                    lv5.add("Problem", "Level is null!");
                } else {
                    this.world.addDetailsToCrashReport(lv4);
                }

                throw new CrashException(lv4);
            }
        }

        this.profiler.swap("animateTick");
        if (!this.paused && this.world != null) {
            this.world.doRandomBlockDisplayTicks(this.player.getBlockX(), this.player.getBlockY(), this.player.getBlockZ());
        }

        this.profiler.swap("particles");
        if (!this.paused) {
            this.particleManager.tick();
        }
    } else if (this.integratedServerConnection != null) {
        this.profiler.swap("pendingConnection");
        this.integratedServerConnection.tick();
    }

    this.profiler.swap("keyboard");
    this.keyboard.pollDebugCrash();
    this.profiler.pop();
}


//================== tick 2 =====================
public void tick(BooleanSupplier shouldKeepTicking) {
    this.getWorldBorder().tick();
    this.tickTime();
    if (this.lightningTicksLeft > 0) {
        this.setLightningTicksLeft(this.lightningTicksLeft - 1);
    }

    this.getProfiler().push("blocks");
    this.chunkManager.tick(shouldKeepTicking, true);  // 跟进tick 3
    this.getProfiler().pop();
}

//================== tick 3 ======================
public void tick(BooleanSupplier shouldKeepTicking, boolean tickChunks) {
}

- 发现tick3中的函数没有具体的实现方法。
- 通过查看类ClientChunkManger发现继承的ChunkManger，使用Jadx查看ChunkManager的交叉引用发现有个类ServerChunkManger也继承了该类。跳进去查看tick函数的实现，跟进tickChunk后发现该函数就是用于怪物的生成

 public void tick(BooleanSupplier shouldKeepTicking, boolean tickChunks) {
    this.world.getProfiler().push("purge");
    this.ticketManager.purge();
    this.tick();
    this.world.getProfiler().swap("chunks");
    if (tickChunks) {
        this.tickChunks();  // 跟进
    }

    this.world.getProfiler().swap("unload");
    this.threadedAnvilChunkStorage.tick(shouldKeepTicking);
    this.world.getProfiler().pop();
    this.initChunkCaches();
}

2. 机制分析

1. 生成周期

生成周期——怪物每次生成所间隔的时间

2. 基础生成

- 基础生成——每个周期都会尝试3次的生成


private void tickChunks() {

  long l = this.world.getTime();

  long m = l - this.lastMobSpawningTime;

  this.lastMobSpawningTime = l;

  boolean bl = this.world.isDebugWorld();

  if (bl) {

    this.threadedAnvilChunkStorage.tickEntityMovement();

  } else {

    WorldProperties lv = this.world.getLevelProperties();

    Profiler lv2 = this.world.getProfiler();

    lv2.push("pollingChunks");

    int i = this.world.getGameRules().getInt(GameRules.RANDOM_TICK_SPEED);

    boolean bl2 = lv.getTime() % 400L == 0L; // 每400gt = 400 * 0.05 = 20s进行一次生成

    lv2.push("naturalSpawnCount");

    int j = this.ticketManager.getTickedChunkCount();

    SpawnHelper.Info lv3 = SpawnHelper.setupSpawn(j, this.world.iterateEntities(), this::ifChunkLoaded, new SpawnDensityCapper(this.threadedAnvilChunkStorage));

    this.spawnInfo = lv3;

    lv2.swap("filteringLoadedChunks"); // 获取所有已加载的区块

    List<ChunkWithHolder> list = Lists.newArrayListWithCapacity(j);

    for(ChunkHolder lv4 : this.threadedAnvilChunkStorage.entryIterator()) {

      WorldChunk lv5 = lv4.getWorldChunk();

      if (lv5 != null) {

        list.add(new ChunkWithHolder(lv5, lv4));

      }

    }

    lv2.swap("spawnAndTick"); // 开始生成工作

    boolean bl3 = this.world.getGameRules().getBoolean(GameRules.DO_MOB_SPAWNING);

    Collections.shuffle(list);

    for(ChunkWithHolder lv6 : list) {

      WorldChunk lv7 = lv6.chunk;

      ChunkPos lv8 = lv7.getPos();

      if (this.world.shouldTick(lv8) && this.threadedAnvilChunkStorage.shouldTick(lv8)) {

        lv7.increaseInhabitedTime(m);

        if (bl3 && (this.spawnMonsters || this.spawnAnimals) && this.world.getWorldBorder().contains(lv8)) { // 检查世界规则是否允许生成

          SpawnHelper.spawn(this.world, lv7, lv3, this.spawnAnimals, this.spawnMonsters, bl2); // 调用生成辅助函数, 跟进函数

        }

        if (this.world.shouldTickBlocksInChunk(lv8.toLong())) {

          this.world.tickChunk(lv7, i);

        }

      }

    }

    lv2.swap("customSpawners");

    if (bl3) {

      this.world.tickSpawners(this.spawnMonsters, this.spawnAnimals);

    }

    lv2.swap("broadcast");

    list.forEach((chunk) -> chunk.holder.flushUpdates(chunk.chunk));

    lv2.pop();

    lv2.pop();

    this.threadedAnvilChunkStorage.tickEntityMovement();

  }

}

// ==================================spawn==========================

public static void spawn(ServerWorld world, WorldChunk chunk, Info info, boolean spawnAnimals, boolean spawnMonsters, boolean rareSpawn) {

  world.getProfiler().push("spawner");

  for(SpawnGroup lv : SPAWNABLE_GROUPS) {

    if ((spawnAnimals || !lv.isPeaceful()) && (spawnMonsters || lv.isPeaceful()) && (rareSpawn || !lv.isRare()) && info.isBelowCap(lv, chunk.getPos())) {

      Objects.requireNonNull(info);

      Checker var10003 = info::test;

      Objects.requireNonNull(info);

      spawnEntitiesInChunk(lv, world, chunk, var10003, info::run); // 调用函数生成实体在区块中，继续跟进spawnEntitiesInChunk 1

    }

  }

  world.getProfiler().pop();

}

// ===========================getRandomPosInChunkSection=================

private static BlockPos getRandomPosInChunkSection(World world, WorldChunk chunk) {

  ChunkPos lv = chunk.getPos();

  int i = lv.getStartX() + world.random.nextInt(16);

  int j = lv.getStartZ() + world.random.nextInt(16);

  int k = chunk.sampleHeightmap(Type.WORLD_SURFACE, i, j) + 1;

  int l = MathHelper.nextBetween(world.random, world.getBottomY(), k);

  return new BlockPos(i, l, j);

}

// ============================spawnEntitiesInChunk 1========================

public static void spawnEntitiesInChunk(SpawnGroup group, ServerWorld world, WorldChunk chunk, Checker checker, Runner runner) {

  BlockPos lv = getRandomPosInChunkSection(world, chunk); // 从已加载的区块中获取随机的坐标，生物会刷新在该坐标中。X/Z坐标通过该区块的未知加上一个随机数生成。Y坐标则是通过获取当前的X/Z坐标中从世界Y坐标最小值-64到当前X/Z坐标中，最高实体方块的Y坐标+1。这里也是我们所称的LC值，LC值越小（Y轴越小）生物生成的概率会越大，其概率是1/LC因为随机数的范围是-64到最高实体方块的Y轴，如果Y越小随机到的概率会越大，例如：Y是50和Y是100的概率分别是1/(50 + 1 -(-64))和1/(100 + 1-(-64))

  if (lv.getY() >= world.getBottomY() + 1) { //如果坐标大于等于-64 + 1才会进行生成

    spawnEntitiesInChunk(group, world, chunk, lv, checker, runner); // 跟进spawnEntitiesInChunk 2

  }

}

// ========================spawnEntitiesInChunk 2============================

@Debug

public static void spawnEntitiesInChunk(SpawnGroup group, ServerWorld world, BlockPos pos) {

  spawnEntitiesInChunk(group, world, world.getChunk(pos), pos, (type, posx, chunk) -> true, (entity, chunk) -> {

  }); // 跟进spawnEntitiesInChunk 3

}

// ===========================spawnEntitiesInChunk 3=========================

public static void spawnEntitiesInChunk(SpawnGroup group, ServerWorld world, Chunk chunk, BlockPos pos, Checker checker, Runner runner) {

  StructureAccessor lv = world.getStructureAccessor();

  ChunkGenerator lv2 = world.getChunkManager().getChunkGenerator();

  int i = pos.getY(); // 获取刚刚随机的Y坐标

  BlockState lv3 = chunk.getBlockState(pos);

  if (!lv3.isSolidBlock(chunk, pos)) { // 判断是否是实体方块，如果不是则不进行生成

    BlockPos.Mutable lv4 = new BlockPos.Mutable();

    int j = 0;

    for(int k = 0; k < 3; ++k) { // 每次生成会进行3次的基础生成

      int l = pos.getX(); // 获取刚刚随机的X/Z坐标

      int m = pos.getZ();

      int n = 6;

      SpawnSettings.SpawnEntry lv5 = null;

      EntityData lv6 = null;

      int o = MathHelper.ceil(world.random.nextFloat() * 4.0F); // 随机一个数用于每次基础生成的生物实体数量

      int p = 0;

      for(int q = 0; q < o; ++q) { //怪物游走

        l += world.random.nextInt(6) - world.random.nextInt(6); // X/Z坐标每次随机走-5 至 5 格

        m += world.random.nextInt(6) - world.random.nextInt(6);

        lv4.set(l, i, m);

        double d = (double)l + (double)0.5F;

        double e = (double)m + (double)0.5F;

        PlayerEntity lv7 = world.getClosestPlayer(d, (double)i, e, (double)-1.0F, false); //获取距离该需要生成的坐标最近的玩家

        if (lv7 != null) { //如果附近没有最近的玩家则不进行生成

          double f = lv7.squaredDistanceTo(d, (double)i, e); // 获取玩最近玩家到该所需生成生物的X/Y/Z坐标的直线距离（欧拉距离）

          if (isAcceptableSpawnPosition(world, chunk, lv4, f)) // 判断当前随机的坐标是否满足生成条件， 详情见·isAcceptableSpawnPosition·函数

           {

            if (lv5 == null) { // 第一次循环时lv5为null值，在这里对lv5进行赋值

              Optional<SpawnSettings.SpawnEntry> optional = pickRandomSpawnEntry(world, lv, lv2, group, world.random, lv4); // 获取随机的生成条目

              if (optional.isEmpty()) { // 如果为null则终止这一次的基础生成

                break;

              }

              lv5 = (SpawnSettings.SpawnEntry)optional.get();

              o = lv5.minGroupSize + world.random.nextInt(1 + lv5.maxGroupSize - lv5.minGroupSize); // 实际每次基础生成需要生成的数量

            }

            if (canSpawn(world, group, lv, lv2, lv5, lv4, f) && checker.test(lv5.type, lv4, chunk)) { // 判断是否符合条件，若符合则进行生成 跟进 canSpawn 1

              MobEntity lv8 = createMob(world, lv5.type); // 根据随机的条目获取其生物类型创建生物实体

              if (lv8 == null) { // 若创建失败则终止本次周期的所有基础生成

                return;

              }

              lv8.refreshPositionAndAngles(d, (double)i, e, world.random.nextFloat() * 360.0F, 0.0F); // 对刚刚创建的实体设置其坐标

              if (isValidSpawn(world, lv8, f)) { // 判断是否如何生成 跟进 isValidSpawn

                lv6 = lv8.initialize(world, world.getLocalDifficulty(lv8.getBlockPos()), SpawnReason.NATURAL, lv6, (NbtCompound)null); // 根据世界难度对生物进行初始化数值

                ++j;

                ++p;

                world.spawnEntityAndPassengers(lv8); // 生成实体

                runner.run(lv8, chunk);

                if (j >= lv8.getLimitPerChunk()) {

                  return; // 如果超过每个区块的最大值则终止本次周期的所有基础生成

                }

                if (lv8.spawnsTooManyForEachTry(p)) {

                  break;

                }

              }

            }

          }

        }

      }

    }

  }

}

// ========================isAcceptableSpawnPosition===================

private static boolean isAcceptableSpawnPosition(ServerWorld world, Chunk chunk, BlockPos.Mutable pos, double squaredDistance) {

  if (squaredDistance <= (double)576.0F) { // 判断距离是否大于等于 24 * 24， 这里的squaredDistance是距离玩家的直线距离并且没有进行开平方运算，所以需要 24 * 24， 如过距离小于<=24则不进行刷怪

    return false;

  } else if (world.getSpawnPos().isWithinDistance(new Vec3d((double)pos.getX() + (double)0.5F, (double)pos.getY(), (double)pos.getZ() + (double)0.5F), (double)24.0F)) { // 获取出生点的位置，同上判断

    return false;

  } else {

    return Objects.equals(new ChunkPos(pos), chunk.getPos()) || world.shouldTick(pos); // 判断当前的位置是否相等

  }

}

// ==========================canSpawn 1====================================

private static boolean canSpawn(ServerWorld world, SpawnGroup group, StructureAccessor structureAccessor, ChunkGenerator chunkGenerator, SpawnSettings.SpawnEntry spawnEntry, BlockPos.Mutable pos, double squaredDistance) {

  EntityType<?> lv = spawnEntry.type;

  if (lv.getSpawnGroup() == SpawnGroup.MISC) { // 若生成类型是 杂项则不生成

    return false;

  } else if (!lv.isSpawnableFarFromPlayer() && squaredDistance > (double)(lv.getSpawnGroup().getImmediateDespawnRange() * lv.getSpawnGroup().getImmediateDespawnRange())) { // 若坐标离玩家很近，并且直线距离超过了128则不进行生成， 详情看SpawnGroup

    return false;

  } else if (lv.isSummonable() && containsSpawnEntry(world, structureAccessor, chunkGenerator, group, spawnEntry, pos)) { // 判断所生成的生物是否可召唤，并且包含在条目里面

    SpawnRestriction.Location lv2 = SpawnRestriction.getLocation(lv); // 获取该坐标的位置限制区域。

    if (!canSpawn(lv2, world, pos, lv)) // 判断是否可生成， 跟进 canSpawn 2{

      return false;

    } else if (!SpawnRestriction.canSpawn(lv, world, SpawnReason.NATURAL, pos, world.random)) {  // 判断当前区域是否可以生成对应的生物，比如史莱姆需要在史莱姆区块或者沼泽，每个生物实体都有自己的canSpawn检测函数， 详情看SpawnRestriction

      return false;

    } else {

      return world.isSpaceEmpty(lv.createSimpleBoundingBox((double)pos.getX() + (double)0.5F, (double)pos.getY(), (double)pos.getZ() + (double)0.5F));  // 判断当前生物的坐标是否是有其他的东西在上面，若没有则进行生成

    }

  } else {

    return false; // 不生成

  }

}

// ==============================isValidSpawn==================================

private static boolean isValidSpawn(ServerWorld world, MobEntity entity, double squaredDistance) {

  if (squaredDistance > (double)(entity.getType().getSpawnGroup().getImmediateDespawnRange() * entity.getType().getSpawnGroup().getImmediateDespawnRange()) && entity.canImmediatelyDespawn(squaredDistance)) { // 判断坐标与玩家之间的距离是否 > 128， 若是则不生成

    return false;

  } else {

    return entity.canSpawn(world, SpawnReason.NATURAL) && entity.canSpawn(world); //

  }

}

// ============================ canSpawn 2 =====================================

public static boolean canSpawn(SpawnRestriction.Location location, WorldView world, BlockPos pos, @Nullable EntityType<?> entityType) {

  if (location == Location.NO_RESTRICTIONS) {

    return true; // 如果区域是不限制的则进行生成

  } else if (entityType != null && world.getWorldBorder().contains(pos)) { // 若生成的实体不为null且世界边界里包含了该坐标则

    BlockState lv = world.getBlockState(pos); // 获取方块的状态

    FluidState lv2 = world.getFluidState(pos); // 获取流体状态

    BlockPos lv3 = pos.up(); // 获取方块上面/下面

    BlockPos lv4 = pos.down();

    switch (location) {

      case IN_WATER: // 如果生成区域在水里

        return lv2.isIn(FluidTags.WATER) && !world.getBlockState(lv3).isSolidBlock(world, lv3);

      case IN_LAVA: // 在岩浆里

        return lv2.isIn(FluidTags.LAVA);

      case ON_GROUND: // 在地表面 或 其他

      default:

        BlockState lv5 = world.getBlockState(lv4);

        if (!lv5.allowsSpawning(world, lv4, entityType)) { // 当前方块是否是实体方块， 不是则不生成 this.allowsSpawningPredicate = (state, world, pos, type) -> state.isSideSolidFullSquare(world, pos, Direction.UP) && state.getLuminance() < 14;

          return false;

        } else { // 当前坐标上面是否没有东西， 是就生成

          return isClearForSpawn(world, pos, lv, lv2, entityType) && isClearForSpawn(world, lv3, world.getBlockState(lv3), world.getFluidState(lv3), entityType);

        }

    }

  } else {

    return false;

  }

}

// ============================SpawnGroup====================================

public enum SpawnGroup implements StringIdentifiable {

  MONSTER("monster", 70, false, false, 128),

  CREATURE("creature", 10, true, true, 128),

  AMBIENT("ambient", 15, true, false, 128),

  AXOLOTLS("axolotls", 5, true, false, 128),

  UNDERGROUND_WATER_CREATURE("underground_water_creature", 5, true, false, 128),

  WATER_CREATURE("water_creature", 5, true, false, 128),

  WATER_AMBIENT("water_ambient", 20, true, false, 64),

  MISC("misc", -1, true, true, 128);

  public static final Codec<SpawnGroup> CODEC = StringIdentifiable.createCodec(SpawnGroup::values);

  private final int capacity;

  private final boolean peaceful;

  private final boolean rare;

  private final String name;

  private final int despawnStartRange = 32;

  private final int immediateDespawnRange;

  private SpawnGroup(String name, int spawnCap, boolean peaceful, boolean rare, int immediateDespawnRange) {

    this.name = name;

    this.capacity = spawnCap; // 生成最大存在数量

    this.peaceful = peaceful; // 是否在和平模式可生成

    this.rare = rare; // 是否是稀有的

    this.immediateDespawnRange = immediateDespawnRange; // 立刻清除生成的范围

  }

  public String getName() {

    return this.name;

  }

  public String asString() {

    return this.name;

  }

  public int getCapacity() {

    return this.capacity;

  }

  public boolean isPeaceful() {

    return this.peaceful;

  }

  public boolean isRare() {

    return this.rare;

  }

  public int getImmediateDespawnRange() {

    return this.immediateDespawnRange;

  }

  public int getDespawnStartRange() {

    return 32;

  }

}

// ========================== SpawnRestriction ================================

public class SpawnRestriction {

  private static final Map<EntityType<?>, Entry> RESTRICTIONS = Maps.newHashMap();

  private static <T extends MobEntity> void register(EntityType<T> type, Location location, Heightmap.Type heightmapType, SpawnPredicate<T> predicate) {

    Entry lv = (Entry)RESTRICTIONS.put(type, new Entry(heightmapType, location, predicate));

    if (lv != null) {

      throw new IllegalStateException("Duplicate registration for type " + Registries.ENTITY_TYPE.getId(type));

    }

  }

  public static Location getLocation(EntityType<?> type) {

    Entry lv = (Entry)RESTRICTIONS.get(type);

    return lv == null ? SpawnRestriction.Location.NO_RESTRICTIONS : lv.location;

  }

  public static Heightmap.Type getHeightmapType(@Nullable EntityType<?> type) {

    Entry lv = (Entry)RESTRICTIONS.get(type);

    return lv == null ? Type.MOTION_BLOCKING_NO_LEAVES : lv.heightmapType;

  }

  public static <T extends Entity> boolean canSpawn(EntityType<T> type, ServerWorldAccess world, SpawnReason spawnReason, BlockPos pos, Random random) { // 根据不同的生物获取其类型使用对应的生成检测器

    Entry lv = (Entry)RESTRICTIONS.get(type);

    return lv == null || lv.predicate.test(type, world, spawnReason, pos, random);

  }

  static { // 注册每个生物自己的生成检测器

    register(EntityType.AXOLOTL, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, AxolotlEntity::canSpawn);

    register(EntityType.COD, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, WaterCreatureEntity::canSpawn);

    register(EntityType.DOLPHIN, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, WaterCreatureEntity::canSpawn);

    register(EntityType.DROWNED, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, DrownedEntity::canSpawn);

    register(EntityType.GUARDIAN, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, GuardianEntity::canSpawn);

    register(EntityType.PUFFERFISH, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, WaterCreatureEntity::canSpawn);

    register(EntityType.SALMON, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, WaterCreatureEntity::canSpawn);

    register(EntityType.SQUID, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, WaterCreatureEntity::canSpawn);

    register(EntityType.TROPICAL_FISH, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, TropicalFishEntity::canTropicalFishSpawn);

    register(EntityType.BAT, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, BatEntity::canSpawn);

    register(EntityType.BLAZE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnIgnoreLightLevel);

    register(EntityType.CAVE_SPIDER, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.CHICKEN, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.COW, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.CREEPER, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.DONKEY, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.ENDERMAN, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.ENDERMITE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, EndermiteEntity::canSpawn);

    register(EntityType.ENDER_DRAGON, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, MobEntity::canMobSpawn);

    register(EntityType.FROG, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, FrogEntity::canSpawn);

    register(EntityType.GHAST, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, GhastEntity::canSpawn);

    register(EntityType.GIANT, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.GLOW_SQUID, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, GlowSquidEntity::canSpawn);

    register(EntityType.GOAT, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, GoatEntity::canSpawn);

    register(EntityType.HORSE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.HUSK, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HuskEntity::canSpawn);

    register(EntityType.IRON_GOLEM, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, MobEntity::canMobSpawn);

    register(EntityType.LLAMA, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.MAGMA_CUBE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, MagmaCubeEntity::canMagmaCubeSpawn);

    register(EntityType.MOOSHROOM, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, MooshroomEntity::canSpawn);

    register(EntityType.MULE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.OCELOT, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING, OcelotEntity::canSpawn);

    register(EntityType.PARROT, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING, ParrotEntity::canSpawn);

    register(EntityType.PIG, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.HOGLIN, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HoglinEntity::canSpawn);

    register(EntityType.PIGLIN, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, PiglinEntity::canSpawn);

    register(EntityType.PILLAGER, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, PatrolEntity::canSpawn);

    register(EntityType.POLAR_BEAR, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, PolarBearEntity::canSpawn);

    register(EntityType.RABBIT, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, RabbitEntity::canSpawn);

    register(EntityType.SHEEP, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.SILVERFISH, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, SilverfishEntity::canSpawn);

    register(EntityType.SKELETON, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.SKELETON_HORSE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.SLIME, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, SlimeEntity::canSpawn);

    register(EntityType.SNOW_GOLEM, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, MobEntity::canMobSpawn);

    register(EntityType.SPIDER, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.STRAY, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, StrayEntity::canSpawn);

    register(EntityType.STRIDER, SpawnRestriction.Location.IN_LAVA, Type.MOTION_BLOCKING_NO_LEAVES, StriderEntity::canSpawn);

    register(EntityType.TURTLE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, TurtleEntity::canSpawn);

    register(EntityType.VILLAGER, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, MobEntity::canMobSpawn);

    register(EntityType.WITCH, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.WITHER, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.WITHER_SKELETON, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.WOLF, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, WolfEntity::canSpawn);

    register(EntityType.ZOMBIE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.ZOMBIE_HORSE, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.ZOMBIFIED_PIGLIN, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, ZombifiedPiglinEntity::canSpawn);

    register(EntityType.ZOMBIE_VILLAGER, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.CAT, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.ELDER_GUARDIAN, SpawnRestriction.Location.IN_WATER, Type.MOTION_BLOCKING_NO_LEAVES, GuardianEntity::canSpawn);

    register(EntityType.EVOKER, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.FOX, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, FoxEntity::canSpawn);

    register(EntityType.ILLUSIONER, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.PANDA, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.PHANTOM, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, MobEntity::canMobSpawn);

    register(EntityType.RAVAGER, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.SHULKER, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, MobEntity::canMobSpawn);

    register(EntityType.TRADER_LLAMA, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, AnimalEntity::isValidNaturalSpawn);

    register(EntityType.VEX, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.VINDICATOR, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, HostileEntity::canSpawnInDark);

    register(EntityType.WANDERING_TRADER, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, MobEntity::canMobSpawn);

    register(EntityType.WARDEN, SpawnRestriction.Location.NO_RESTRICTIONS, Type.MOTION_BLOCKING_NO_LEAVES, MobEntity::canMobSpawn);

  }

  static class Entry {

    final Heightmap.Type heightmapType;

    final Location location;

    final SpawnPredicate<?> predicate;

    public Entry(Heightmap.Type heightmapType, Location location, SpawnPredicate<?> predicate) {

      this.heightmapType = heightmapType;

      this.location = location;

      this.predicate = predicate;

    }

  }

  public static enum Location {

    ON_GROUND,

    IN_WATER,

    NO_RESTRICTIONS,

    IN_LAVA;

  }

  @FunctionalInterface

  public interface SpawnPredicate<T extends Entity> {

    boolean test(EntityType<T> type, ServerWorldAccess world, SpawnReason spawnReason, BlockPos pos, Random random);

  }

}

// ========================== 史莱姆生成器 ===============================

register(EntityType.SLIME, SpawnRestriction.Location.ON_GROUND, Type.MOTION_BLOCKING_NO_LEAVES, SlimeEntity::canSpawn); // 直接跟进史莱姆的canSpawn

public static boolean canSpawn(EntityType<SlimeEntity> type, WorldAccess world, SpawnReason spawnReason, BlockPos pos, Random random) {

  if (world.getDifficulty() != Difficulty.PEACEFUL) {

    if (world.getBiome(pos).isIn(BiomeTags.ALLOWS_SURFACE_SLIME_SPAWNS) && pos.getY() > 50 && pos.getY() < 70 && random.nextFloat() < 0.5F && random.nextFloat() < world.getMoonSize() && world.getLightLevel(pos) <= random.nextInt(8)) { // 判断坐标是否位于可生成史莱姆的表面， 且Y坐标>50<70的位置，生成一个随机数跟当前坐标的亮度进行比较，如果当前亮度小于这个随机数则进行生成。这里也就是史莱姆的生成概率为：1/(7 - 当前亮度)，可得出若亮度越低史莱姆生成的概率越高

      return canMobSpawn(type, world, spawnReason, pos, random);

    }

    if (!(world instanceof StructureWorldAccess)) {

      return false;

    }

    ChunkPos lv = new ChunkPos(pos);

    boolean bl = ChunkRandom.getSlimeRandom(lv.x, lv.z, ((StructureWorldAccess)world).getSeed(), 987234911L).nextInt(10) == 0;

    if (random.nextInt(10) == 0 && bl && pos.getY() < 40) {

    // 若不在可生成史莱姆则根据世界种子随机一个区块当作史莱姆区块， 判断是否在史莱姆区块中， 且随机一个 0 - 9 的随机数如果是0，且Y轴小于40则生成史莱姆。所以史莱姆区块中生成史莱姆的概率是1 / 10

      return canMobSpawn(type, world, spawnReason, pos, random);

    }

  }

  return false;

}

3. 总结

每次生成的周期是20s
每次生成检测范围：以玩家为圆心的球形区域，若坐标小于或等于半径24则不生成，若坐标大于半径24且小于128则生成
当前X/Z坐标的最高实体方块的Y坐标+1为max，则生成的概率是1/(max - (-64))，当Y越小概率越大，这既是LC值
每个生物有自己的生成检测器用于判断该生物在该群系是否能生成
